Product Description:
The AC Series Class II A2 Biological Safety Cabinet by BIOBASE is engineered for superior protection in laboratory environments. This cabinet ensures protection for both the operator and the environment, utilizing advanced airflow and filtration systems. The work zone, made from durable 304 stainless steel, is surrounded by negative pressure, ensuring a contamination-free workspace. Equipped with a remote control for easy operation, a motorized front window, and advanced safety features, this cabinet is ideal for a wide range of scientific and medical applications.
Key Features:
- 304 Stainless Steel Work Zone: Ensures durability and is surrounded by negative pressure for maximum contamination control.
- Remote Control Operation: Allows for easy and convenient control of all cabinet functions.
- Footmaster Caster: Features universal casters with brakes and leveling feet for easy mobility and stability.
- Foot Switch: Enables adjustment of the front window height without using hands, reducing airflow turbulence during experiments.
- Motorized Front Window: Made from two-layer laminated toughened glass (>6mm) with UV protection for enhanced safety.
- Efficient UV Decontamination: UV lamp emits 253.7 nanometers for optimal sterilization and decontamination.
- Ergonomic Design: Includes a cabinet support block for easy lifting and preventing accidental hand pressing.
This safety cabinet is designed to provide a secure and efficient workspace, making it a valuable asset for any laboratory.

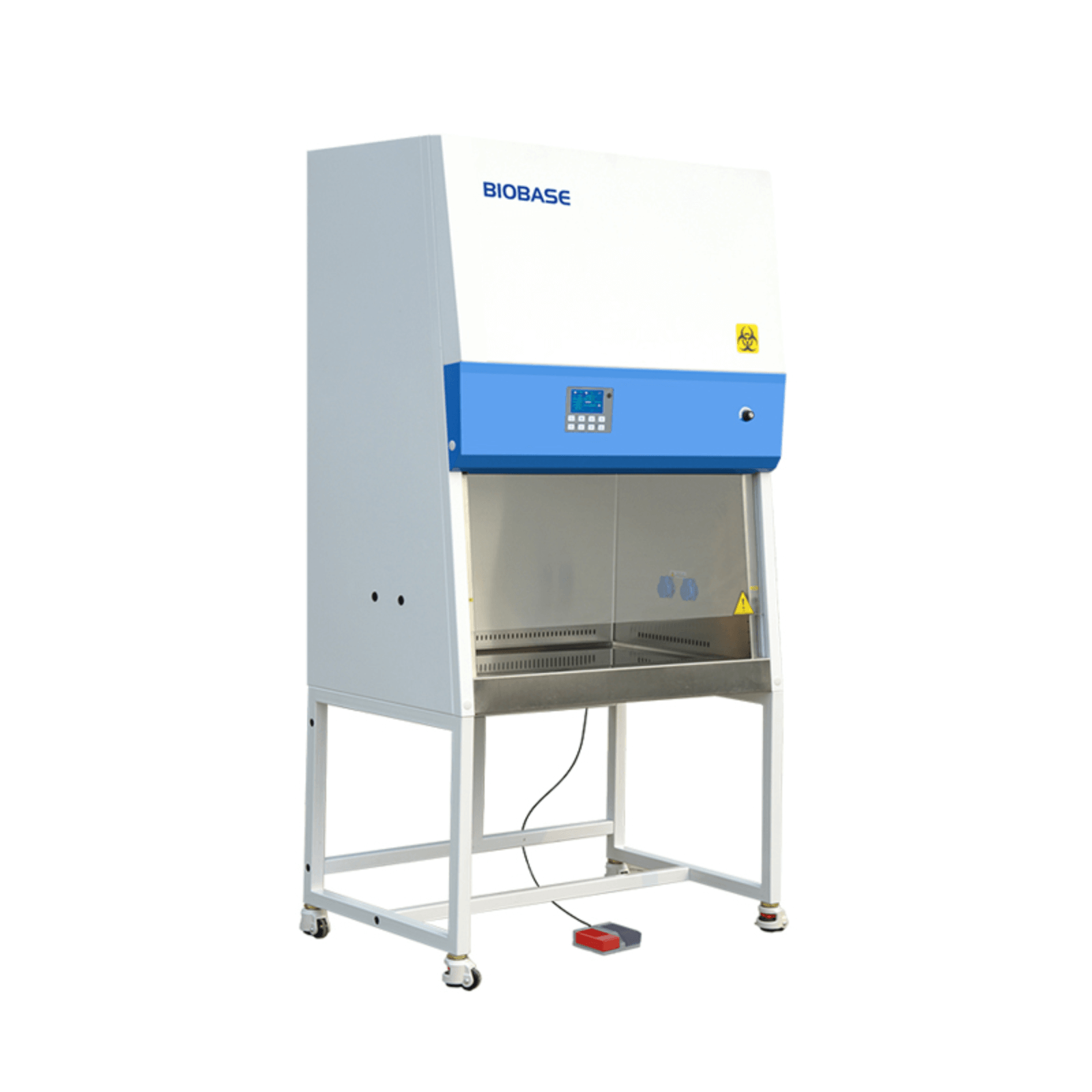

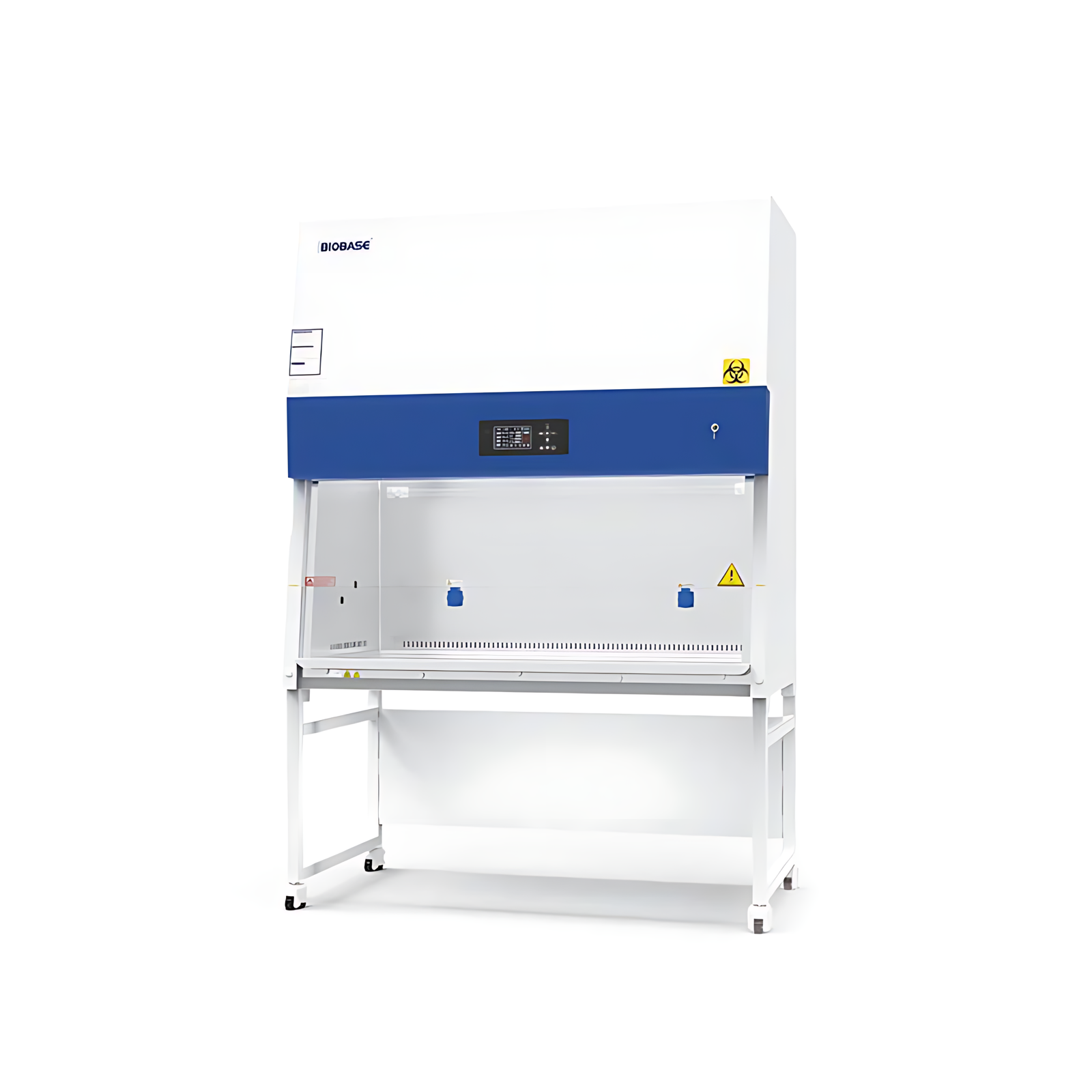

AC Series Class II A2 Biological Safety Cabinet
SKU: BSC-1100IIA2-X, BSC-1300IIA2-X, BSC-1500IIA2-X, BSC-1800IIA2-X, BSC-2000IIA2-X
Vendor: Biobase Group
Request Info / Quote Request Info / Quote
Details
See It In Action ...
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply
Biological safety cabinet is necessary equipment in the laboratory in the search of microbiology, biomedical, DNA recombinant, animal experiment and biological products, especially in the occasion that operator need to adopt protective measure, such us medical and health, pharmacy, medical research. Our equipment provides a safety working environment which don’t have bacterial and dust in the process of bacterial culture.
Features
- Color key display: large screen, more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing.
- Automatically adjust the wind speed.
- With power-off memory function, the state before power-off will be restored after power-on, and there will be visual prompts and alarms.
- The integrated design of the operation area makes it easy to disassemble and clean.
- The cabinet is separated from the base. The height of the adjustable base can be customized.
- Interlocking function: UV lamp and front window; UV lamp and fan, lamp; fan and front window.
- It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets.
8. The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.
9. The negative pressure air duct is equipped with a foreign matter filtering structure to prevent foreign matter such as paper scraps from entering the fan system and affecting the normal operation of the product.
10. The front window glass has a one-key lift function.
11. The cabinet is designed with a 10° inclination angle, which is in line with ergonomic principles, with a larger viewing angle, convenient operation and more humanization.
12. The one-piece hand rest has a large flat surface, which has a larger contact area with the arm and is more comfortable.
Product Specifications

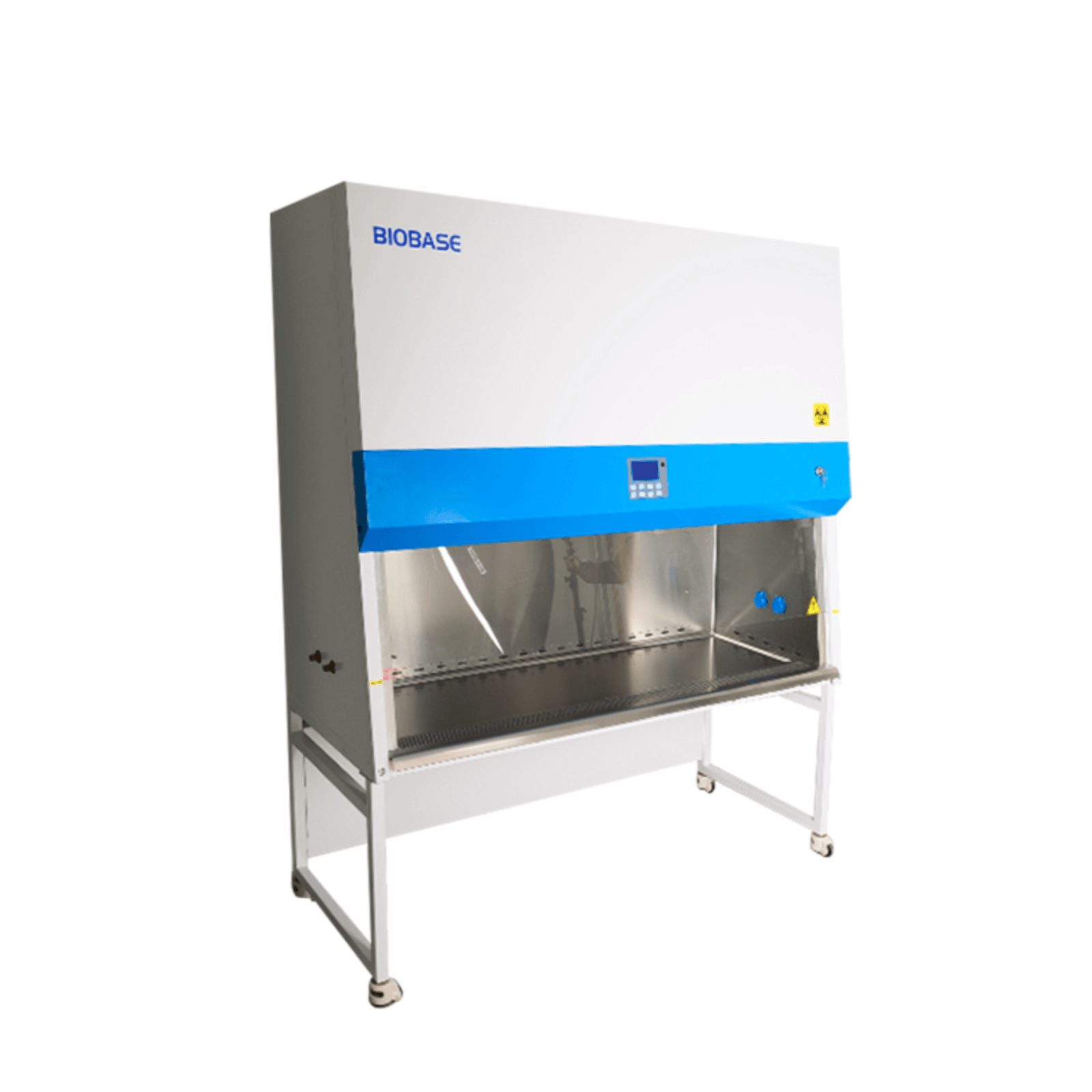

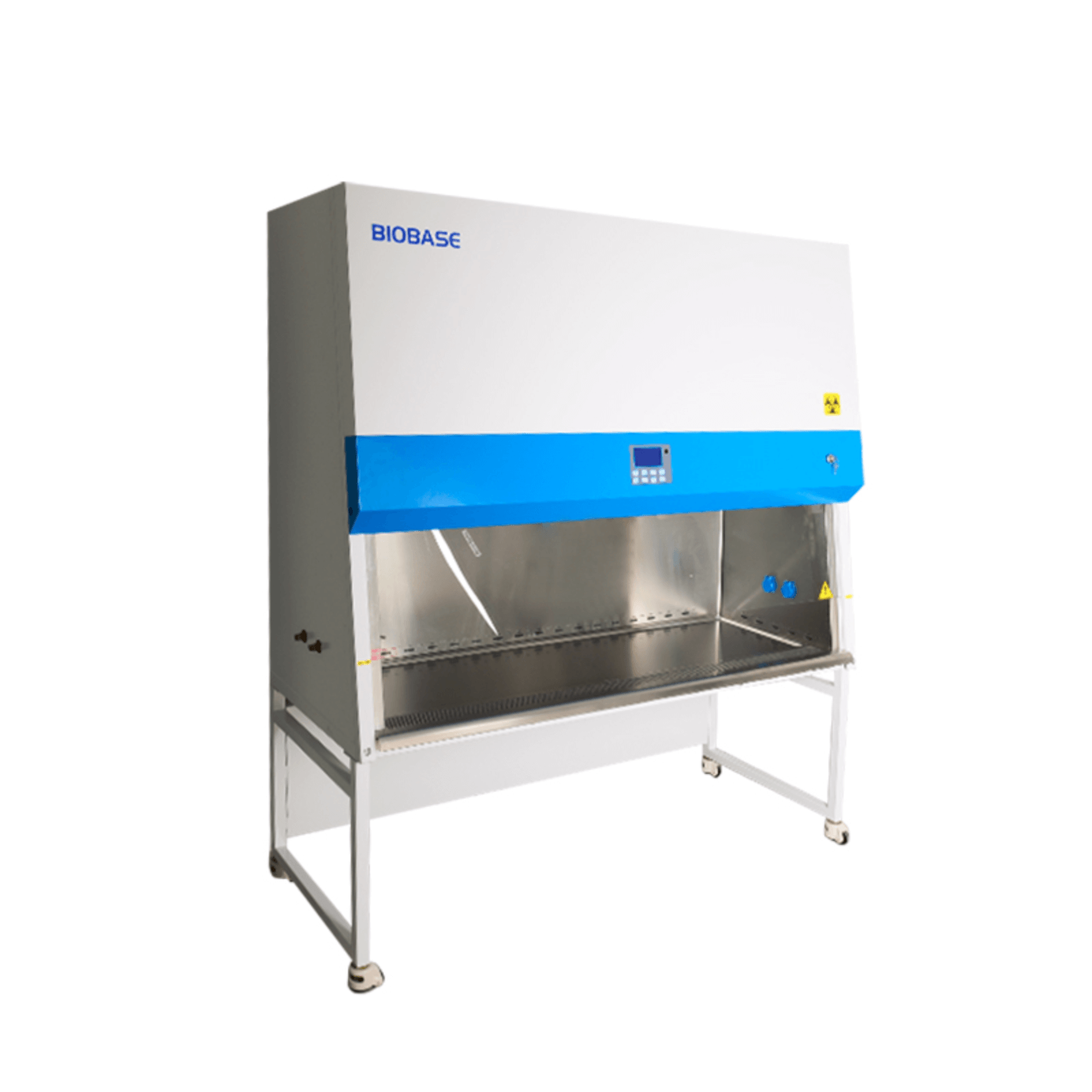

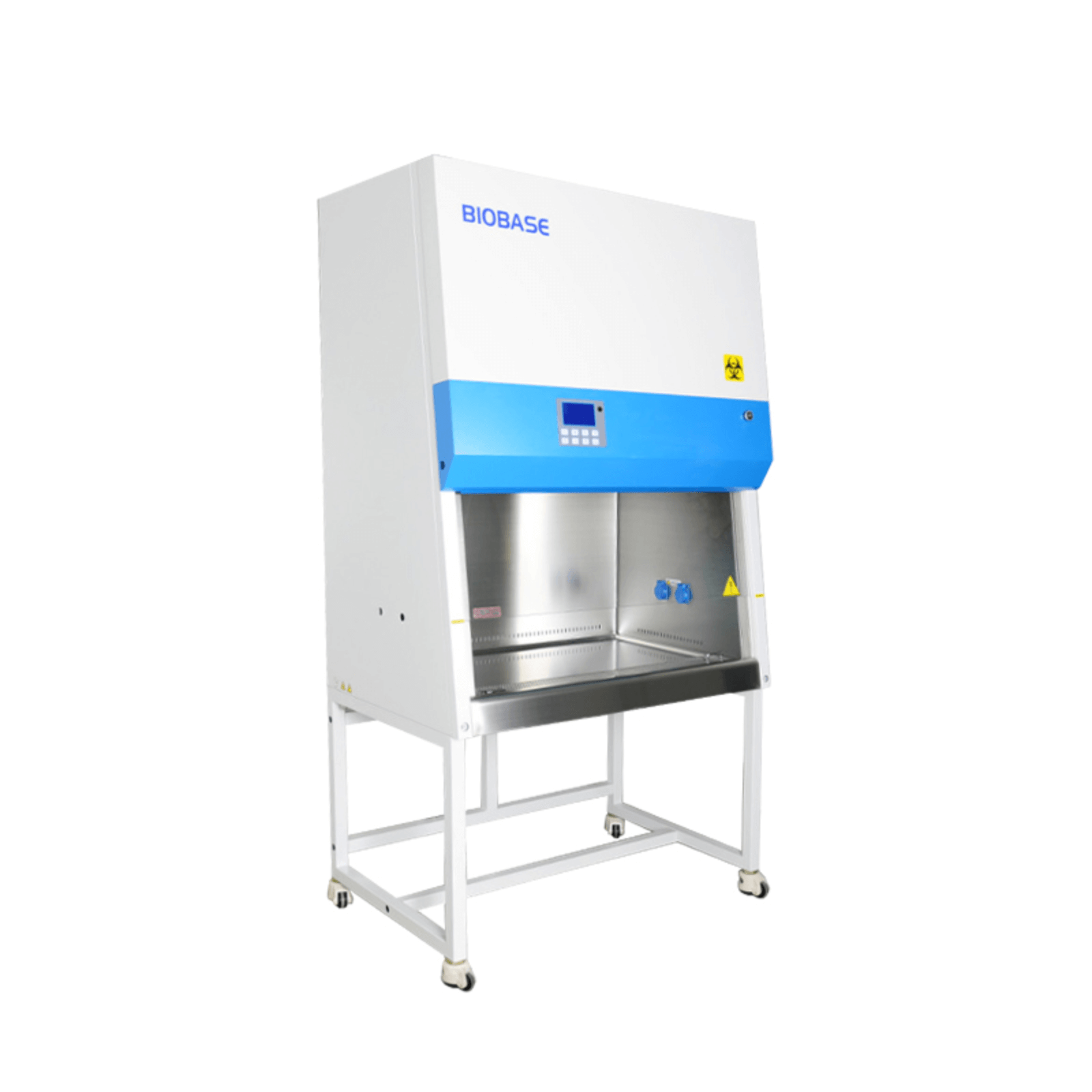

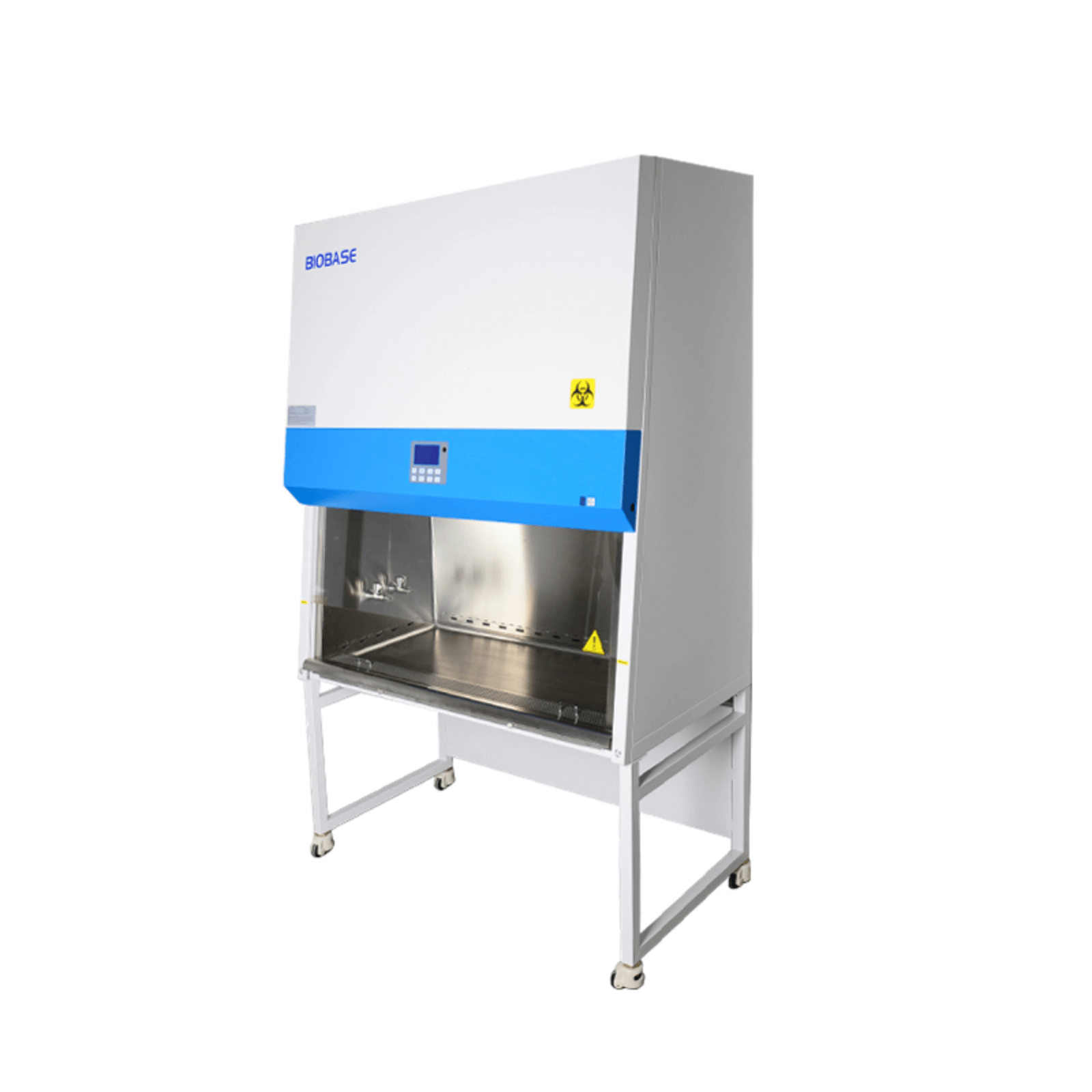

.png) BSC-1100IIA2-X | .png) BSC-1300IIA2-X | .png) BSC-1500IIA2-X | .png) BSC-1800IIA2-X | .png) BSC-2000IIA2-X | |||
|---|---|---|---|---|---|---|---|
| External Size (W*D*H） | 1100*755*2200 mm | 1300*755*2200 mm | 1500*755*2200 mm | 1800*755*2200 mm | 1950*775*2200 mm | ||
| Internal Size (W*D*H） | 940*600*660mm | 1150*600*660mm | 1350*600*660mm | 1625*600*660mm | 1800*600*660mm | ||
| Tested Opening | Safety height 200mm（8"） | ||||||
| Max Opening | 480mm | ||||||
| Inflow Velocity | 0.53±0.025m/s | ||||||
| Downflow Velocity | 0.33±0.025m/s | ||||||
| ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator | ||||||
| Front Window | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV | ||||||
| Noise | ≤65 dB | ||||||
| UV Lamp | 30W*1 | 30W*1 | 40W*1 | 40W*1 | 40W*1 | ||
| UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination | |||||||
| LED lamp | 12W*2 | 14W*2 | 16W*2 | 16W*2 | 12W*4 | ||
| Illumination | ≥1000Lux | ||||||
| Consumption | 600W | 800W | 1300W | 1300W | 1700W | ||
| Waterproof Socket | Two, total load of two sockets:500W | ||||||
| Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | ||||||
| Control System | Microprocessor | ||||||
| Airflow System | 70% air recirculation. 30% air exhaust | ||||||
| Visual and Audio Alarm | Abnormal airflow velocity, filter replacement, front window at unsafe height, high filter pressure alarm, abnormal power failure | ||||||
| Material | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||||
| Work Surface Height | 770mm(Can be customized) | 800mm(Can be customized) | |||||
| Caster | Footmaster caster | ||||||
| Power Supply | AC220V 50 / 60HZ;110V 60HZ | ||||||
| Standard Accessory | LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs | ||||||
| Optional Accessory | Water and gas tap, Electric height adjustable base stand, Armrest | ||||||
| Gross Weight | 220kg | 280kg | 316kg | 366kg | 420kg | ||
| Package Size (W*D*H） | 1230*990*1840mm | 1430*990*1840mm | 1630*990*1840mm | 1930*990*1840mm | 2080*990*1840mm | ||
Related Products

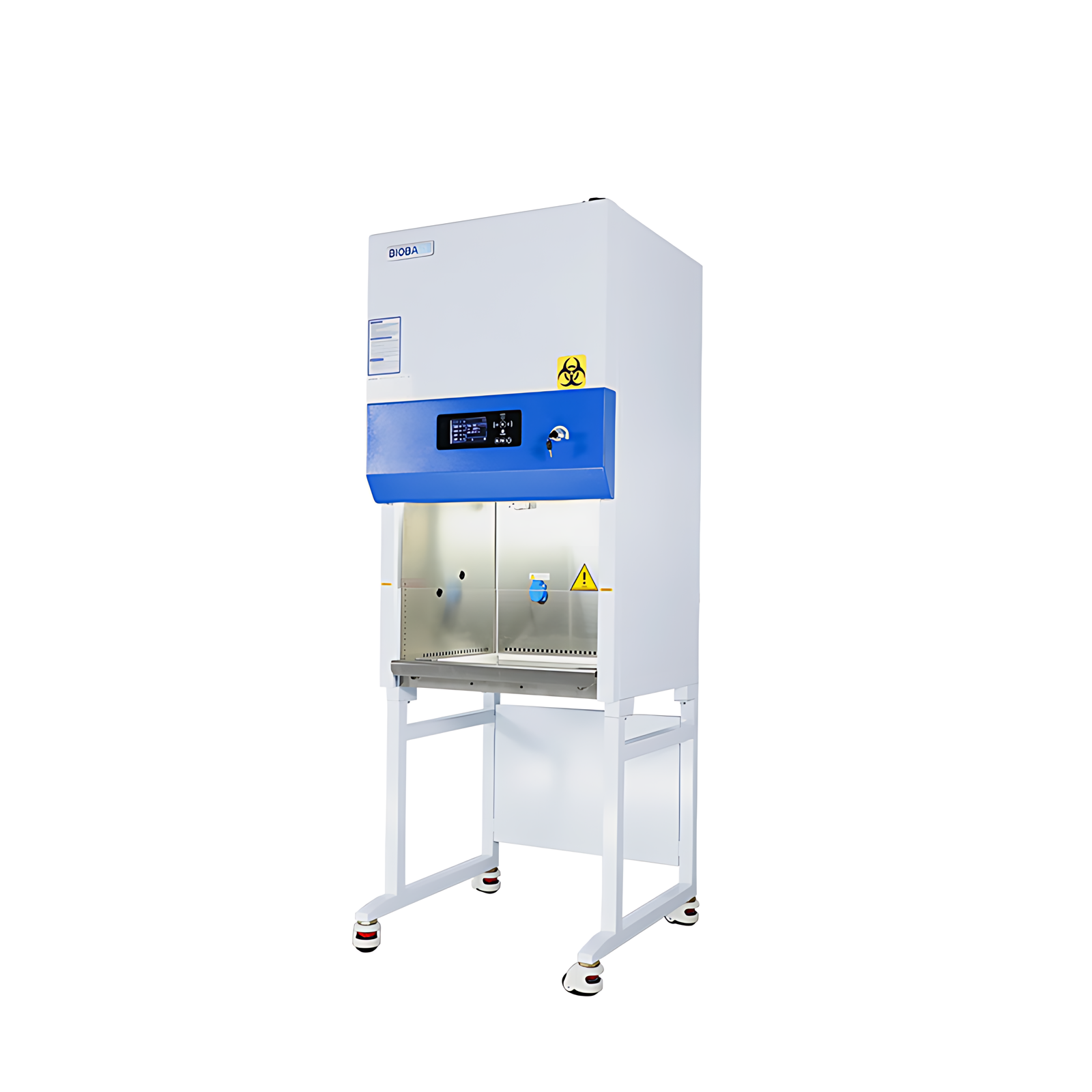

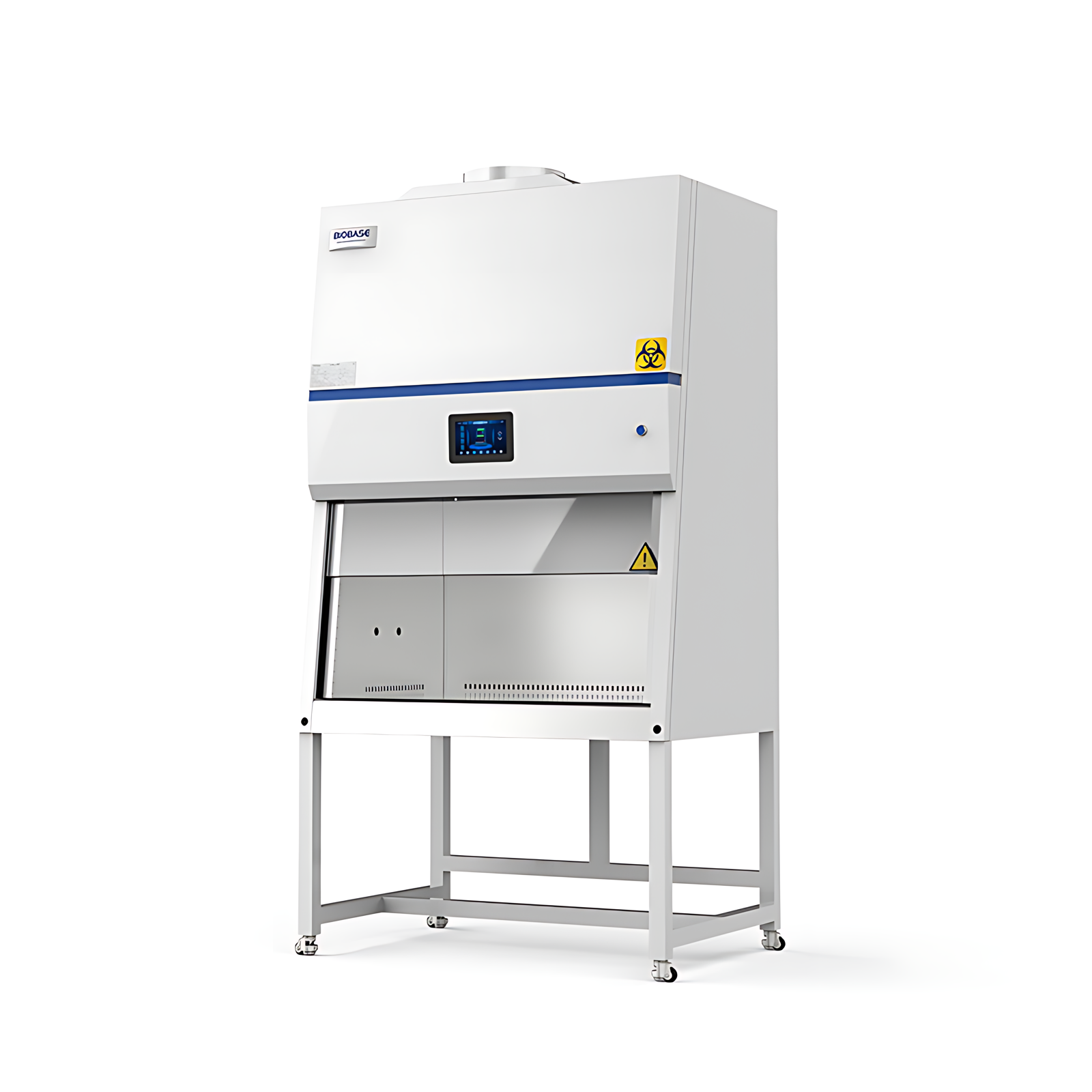

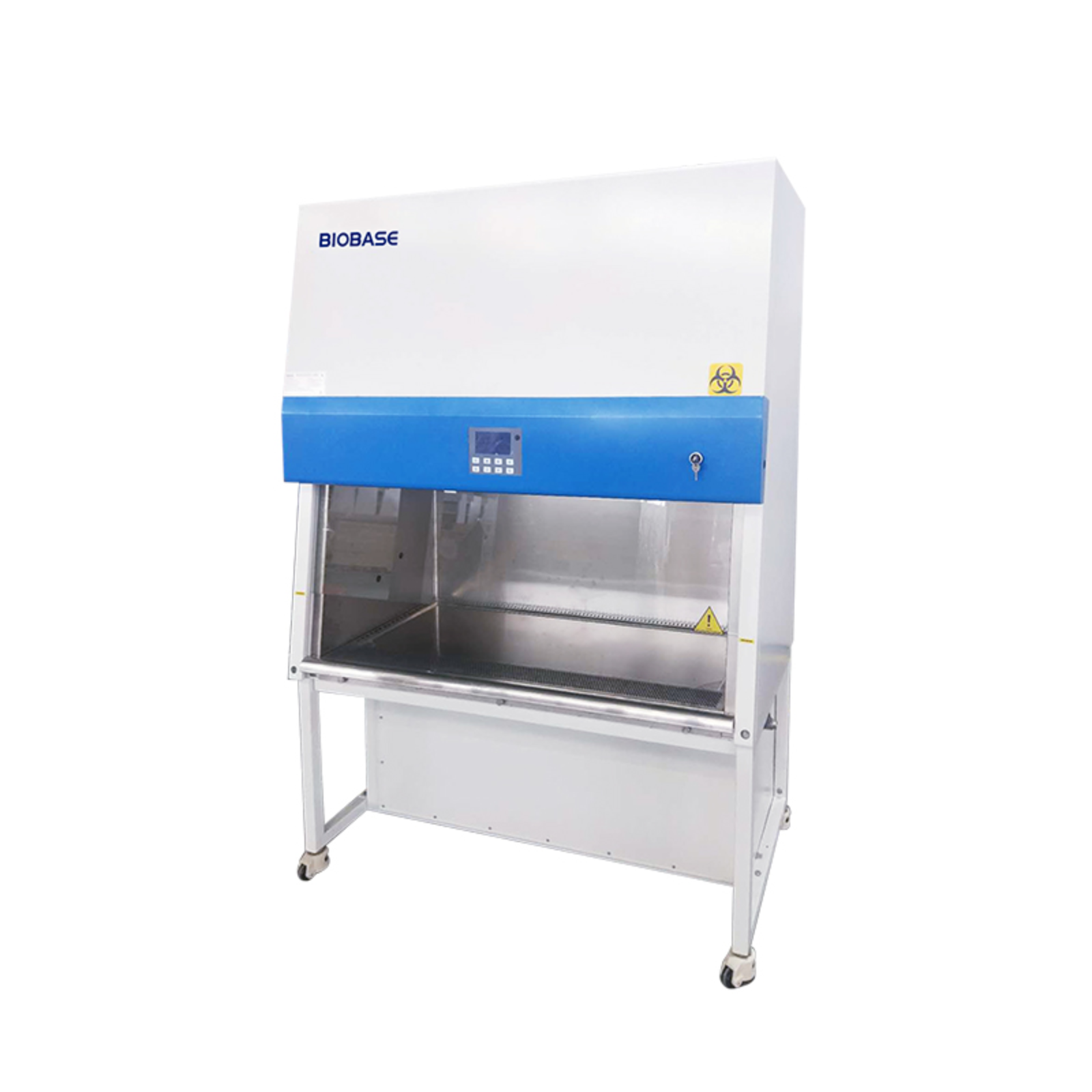

 BIOBASE 11224BBC86 Cytotoxic Safety Cabinet | .png) AC Series Class II A2 Biological Safety Cabinet BSC-1800IIA2-X(Customized) |  AC Series Class II A2 Biological Safety Cabinet BSC-700IIA2-Z |  Pro Series Class ll A2 Biological Safety Cabinet BSC-1100IIA2-Pro | |
|---|---|---|---|---|
