Product Description:
The BIOBASE BK-3200 Auto 3-Part Hematology Analyzer is a reliable and efficient device designed for the automated analysis of blood samples. This analyzer provides detailed measurements of key blood components, including white blood cells, red blood cells, and platelets, using advanced impedance and colorimetric methods. With a 9.7-inch color touch screen, it offers easy operation and displays all parameters and histograms on a single screen, making it an ideal choice for clinical laboratories.
Key Features:
- High Throughput: Processes up to 60 samples per hour, ensuring quick and efficient analysis.
- User-Friendly Interface: 9.7-inch color touch LCD screen for easy operation and clear display of results.
- Minimal Sample Volume: Requires as little as 12μl of whole blood, making it efficient and cost-effective.
- Comprehensive Parameter Analysis: Measures 21 parameters and provides 3 histograms for detailed blood analysis.
- Continuous Operation: Can be operated continuously for 24 hours, ideal for high-demand environments.
- Automatic Cleaning: Features automatic cleaning of the sampler, counting pool, and pipeline after startup.
- Built-in Printer: Comes with a built-in thermal printer and supports external printer connection.
- Advanced Detection Technology: Uses electrical impedance and cyanide-free detection methods for precise results.
- LIS Compatibility: Supports bi-directional LIS, ensuring seamless integration with laboratory information systems.
This analyzer is an excellent choice for laboratories seeking a dependable, easy-to-use solution for routine hematology testing.

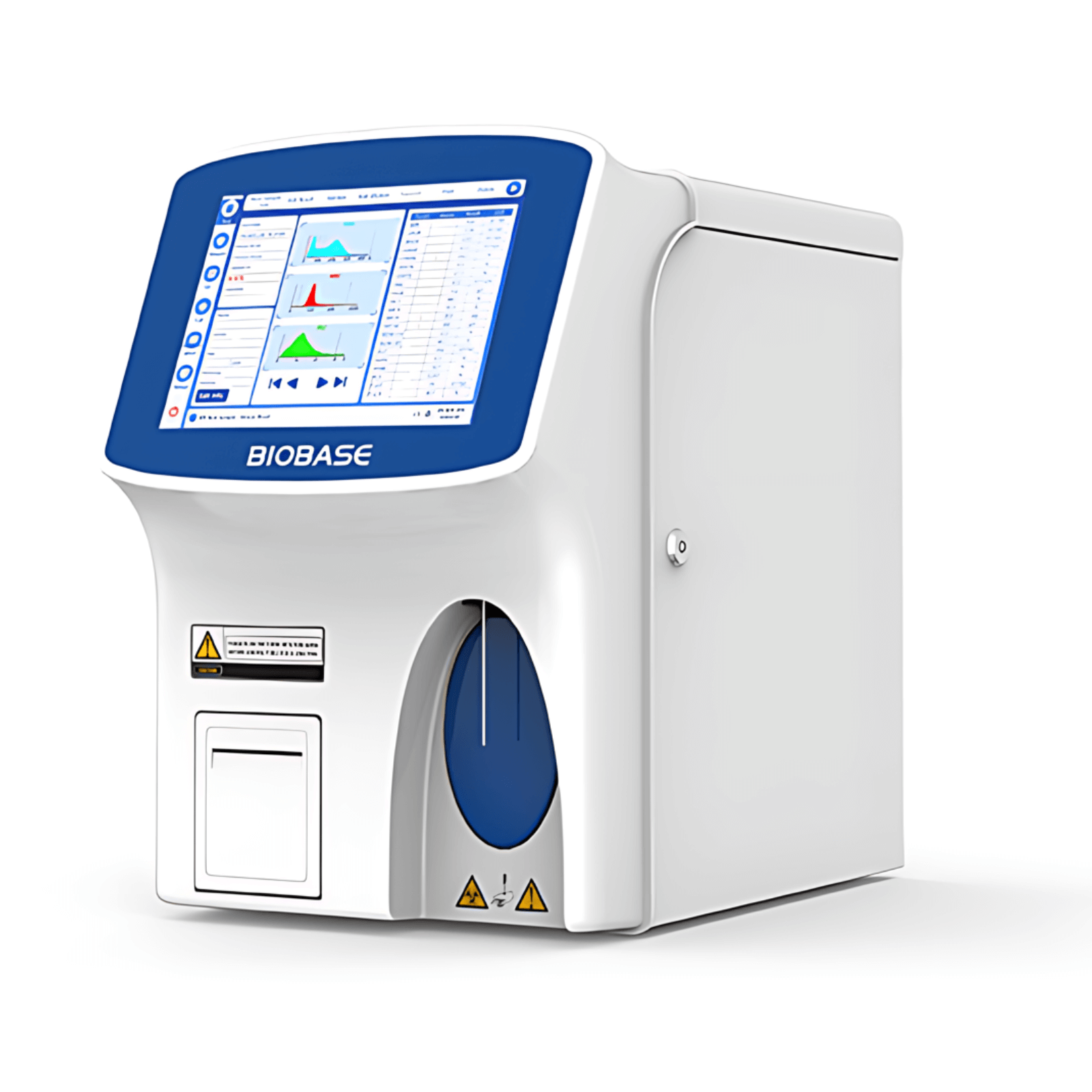

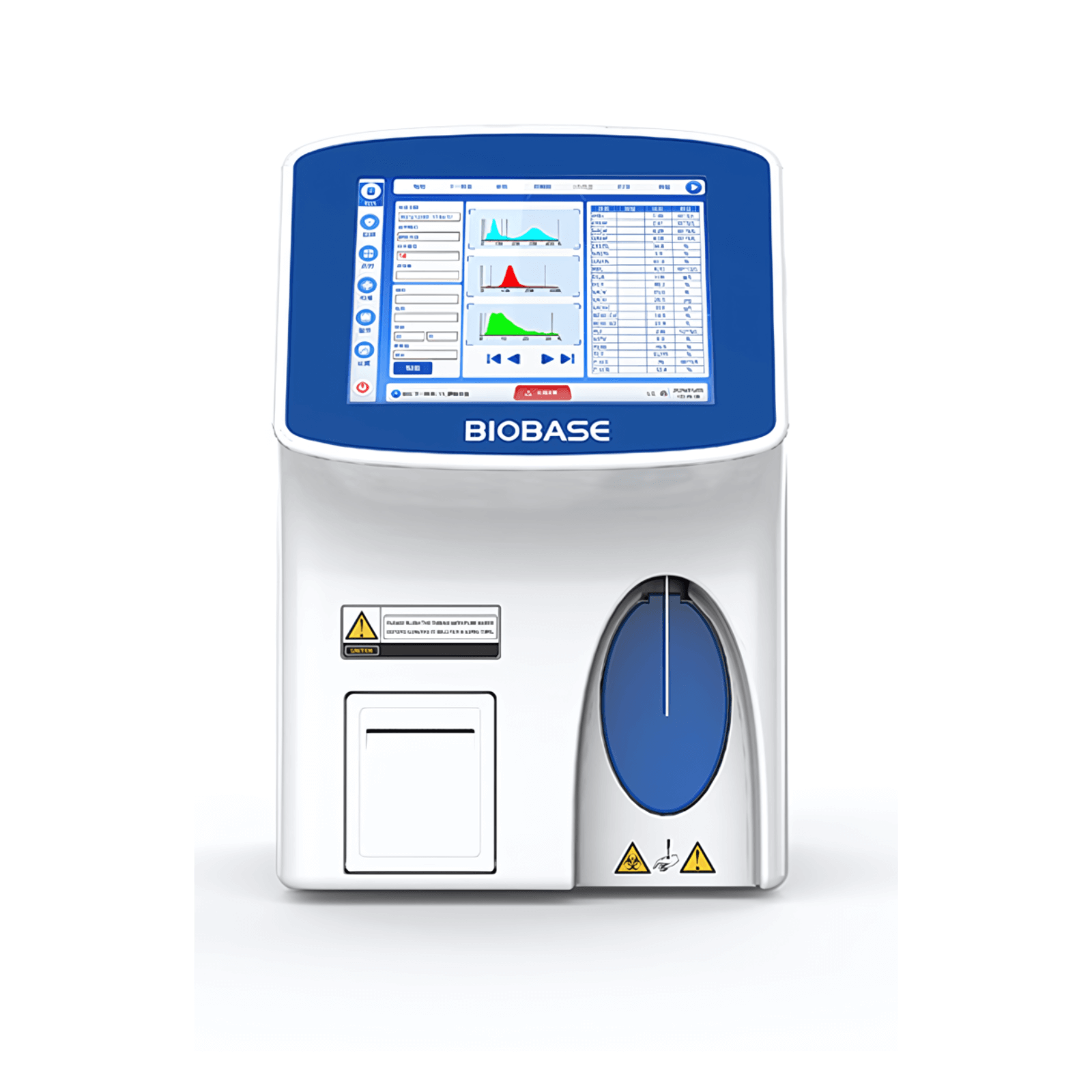

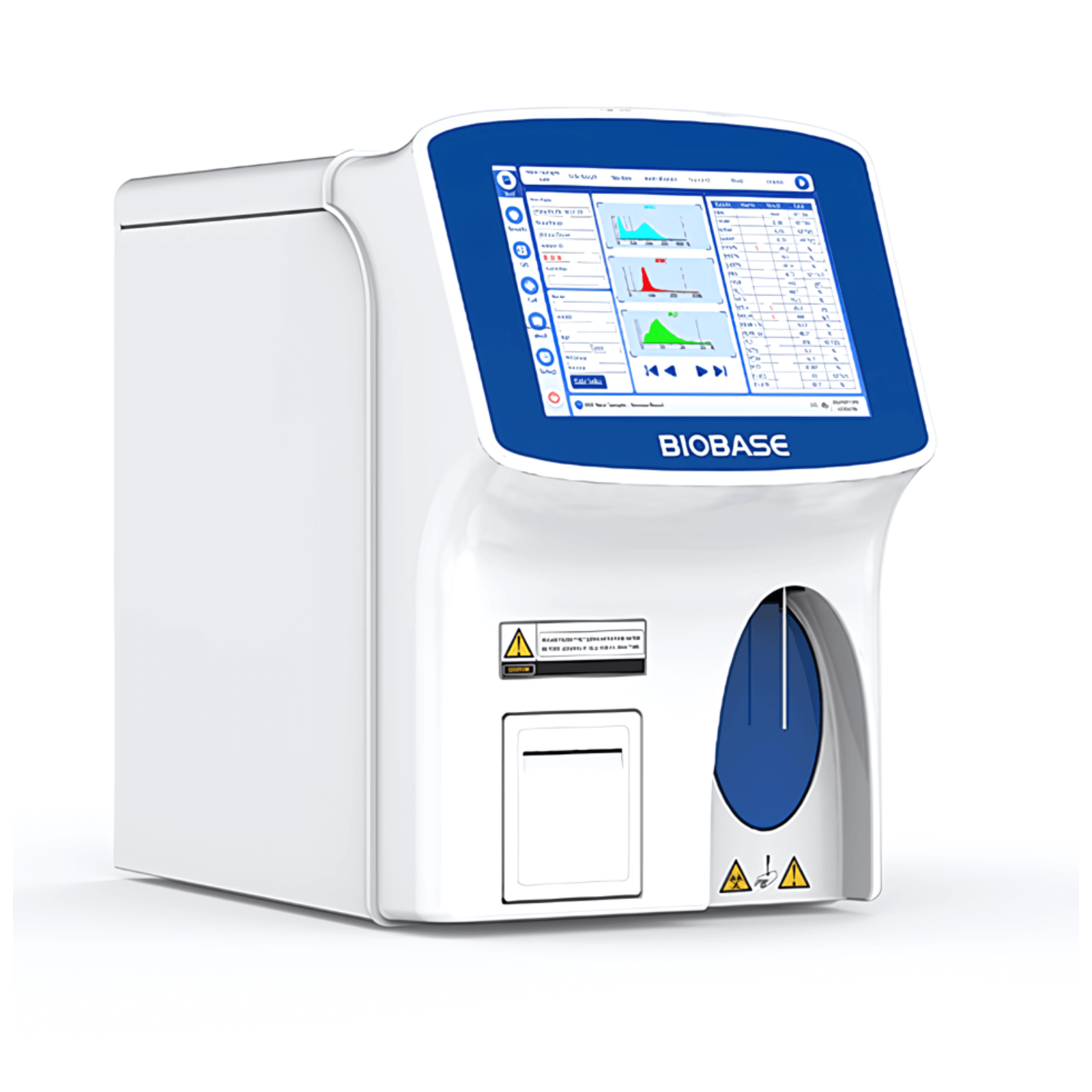

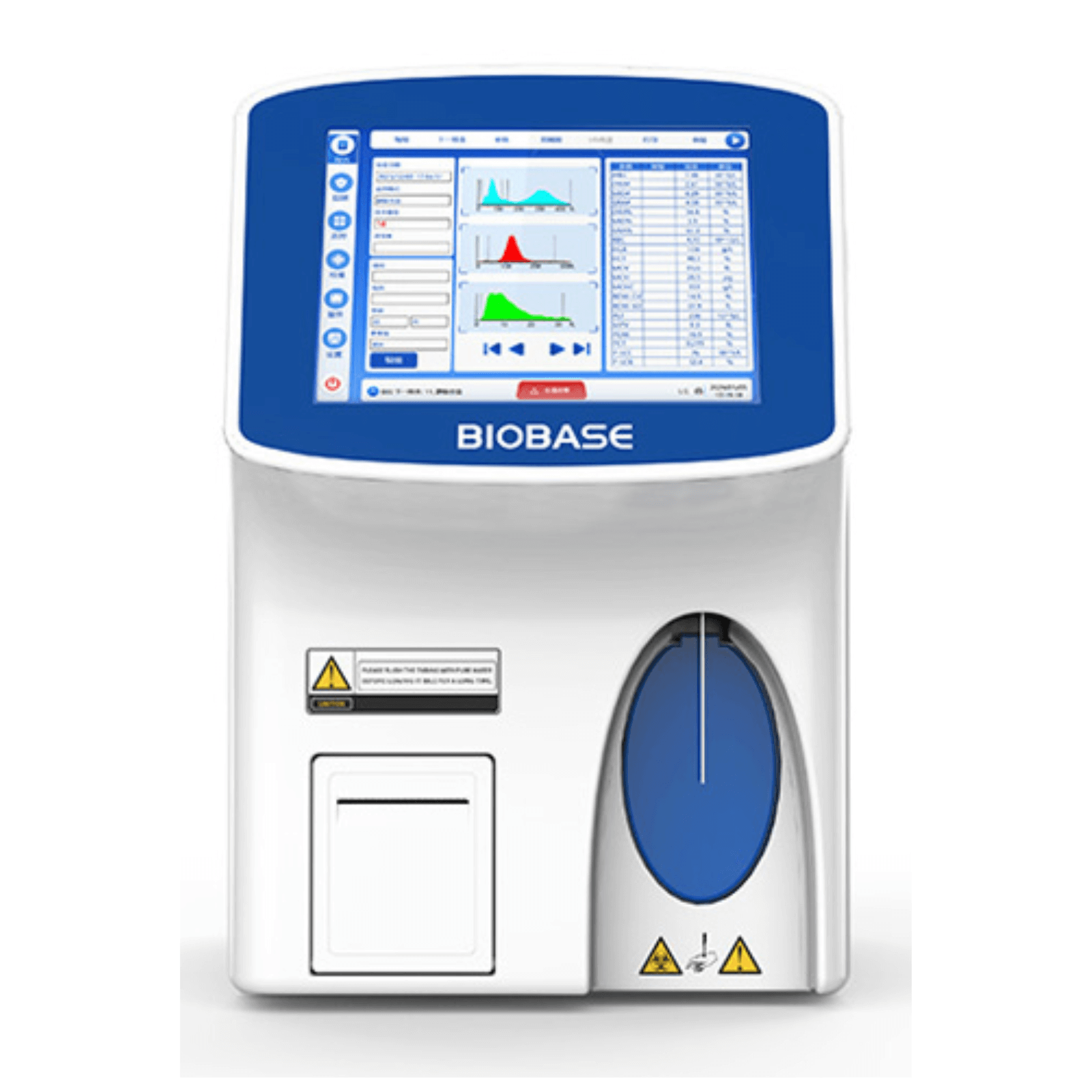

BK-3200 Auto 3-part Hematology Analyzer
SKU: BK-3200
Vendor: Biobase Group
Request Info / Quote Request Info / Quote
Details
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply
Hematology analyzer is a medical device used to detect and analyze the cellular components of blood, mainly including white blood cells, red blood cells, platelets and so on. It uses optical, electronic and other technologies to count, classify and observe the morphology of blood samples. Blood cell analyzer has important application value in clinical examination, disease prevention, diagnosis and treatment.
Product Highlights
1. 9.7-inch color touch LCD screen, easy to operate, display all parameters and histograms on the same screen.
2. Fewer samples are required for testing: whole blood≤12μl, pr.e-diluted≤20μl.
3. 60 samples/hour.
4. 21 parameters + 3 histograms.
5. It can be turned on continuously for 24 hours.
6. Automatically clean the sampler, counting pool and pipeline after starting up.
7. Built-in thermal printer, external printer can be connected.
8. Electrical impedance method, cyanide-free detection of HGB.
9. Fully intelligent blockage removal and alarm function.
10. Both automatic calibration and manual calibration are available.
11.Counting Mode: Venous, capillary, prediluted.
12. Support LIS system.
Product Specifications
| Model | BK-3200 | ||||||
| Throughput | 60 samples/hour | ||||||
| Principle | Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB | ||||||
| Channels | 2 | ||||||
| Parameters | 21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) | ||||||
| Histograms | 3 histograms (including WBC, RBC, PLT histograms) | ||||||
| Sample Volume | Whole blood: 12μl, Prediluted: 20μl | ||||||
| Calibration | Manual, auto calibration | ||||||
| Counting Modes | Venous, capillary, prediluted | ||||||
| Printing Model | Auto print, manual print | ||||||
| LIS | Support Bi-directional LIS | ||||||
| Language | Chinese, English, Spanish, French, Russian, Ukrainian | ||||||
| Reagent | Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml | ||||||
| Data Input | 9.7-inch touch screen, mouse, keyboard (optional) | ||||||
| Output | Internal printer, support external printer | ||||||
| Printer Paper | 57*30mm | ||||||
| Interface | 4 USB ports, network port, RS232 serial port | ||||||
| Storage | 100,000 results with histogram | ||||||
| Unclog | High voltage burn, reverse high-pressure flush | ||||||
| Work Temperature | 15~30°C | ||||||
| Power Supply | 100~240AC, 50/60Hz, 150VA | ||||||
| Relative Humidity | 30%~85% | ||||||
| Atmospheric Pressure | 70.0kPa~110.0kPa | ||||||
| Carry-over Rate | Parameter | WBC | RBC | HGB | PLT | ||
| CV | ≤1.5% | ≤1% | ≤1% | ≤3% | |||
| Background | Parameter | WBC | RBC | HGB | HCT | PLT | |
| Background | ≤ 0.3*10^9/L | ≤ 0.03*10^12/L | ≤1g/L | ≤ 0.5% | ≤ 10*10^9/L | ||
| Linearity | Parameter | Measurement Range | CV | ||||
| WBC | (0.5~10.00*10^9)/L (10.10~99.9*10^9)/L | (±0.5×10^9)/L ±5% | |||||
| RBC | (0.05~1.00*10^12)/L (1.01~9.99*10^12)/L | (±0.05*10^12)/L ±5% | |||||
| HGB | (2~70g)/L (71~300.0g)/L | (±2.0g)/L ±2% | |||||
| PLT | (10~100*10^9)/L (101~999*10^9)/L | (±10.0*10^9)/L ±8% | |||||
| Precision | Parameter | Repeatability | Measurement Range | ||||
| WBC | ≤6.0% | (3.5~9.5*10^9)/L | |||||
| RBC | ≤3.0% | (3.8~5.8*10^12)/L | |||||
| HGB | ≤2.5% | (115~175g)/L | |||||
| PLT | ≤10.0% | (125~350*10^9)/L | |||||
| HCT | ≤3.0% | 35%~50% | |||||
| External Size(W*D*H) | 295*467*418 mm | ||||||
| Packed Size(W*D*H) | Instrument: 404*564*616mm; Reagent: 340*340*340mm | ||||||
| Net Weight | 19 kg | ||||||
| Gross Weight | Instrument: 31 kg; Reagent:13 kg | ||||||
