Product Description:
The BK-6310 5 Part CBC Auto Hematology Analyzer is a fully automatic, high-precision device designed for comprehensive blood analysis. This analyzer is capable of detecting key parameters such as WBC, RBC, PLT, HGB, and more, in both venous whole blood and capillary blood. With advanced technologies like tri-angle laser scatter and flow cytometry, it delivers accurate 5-part WBC differential analysis and counting. Ideal for clinical laboratories, this analyzer offers high throughput, large storage capacity, and an intuitive 14-inch touch screen interface.
Key Features:
- High Throughput: Capable of processing up to 60 tests per hour, ensuring efficient workflow in busy labs.
- Advanced Detection Technology: Utilizes tri-angle laser scatter, flow cytometry, and impedance methods for precise cell counting.
- Accurate WBC Differentiation: Features a 3D holographic scattergram for detailed 5-part WBC analysis.
- User-Friendly Interface: Equipped with a 14-inch touch screen for easy operation and data management.
- Large Storage Capacity: Stores up to 100,000 results, including histograms, scattergrams, and patient information.
- Versatile Sample Handling: Supports various test modes for venous whole blood, capillary blood, and pre-diluted samples.
This analyzer is an excellent choice for laboratories seeking reliable and comprehensive hematology testing solutions.

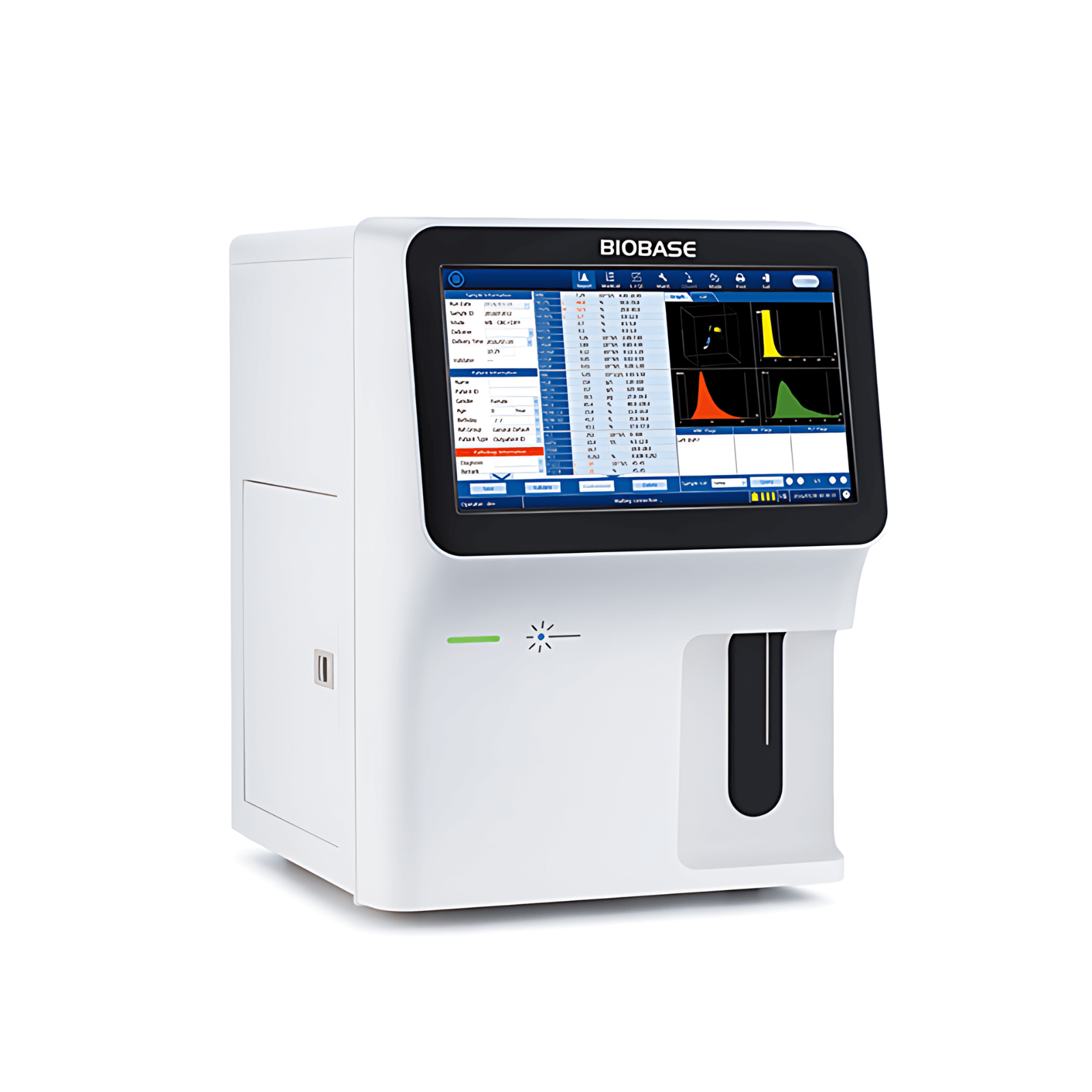

BK-6310 5 Part CBC Auto Hematology Analyzer Machine Blood Fully Automatic
Request Info / Quote Request Info / Quote
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply
This 5-part auto hematology analyzer is applicable for detecting the parameters of WBC, RBC, PLT, HGB, etc. in anticoagulated venous whole blood or capillary blood, as well as WBC 5-part differential analysis and WBC counting.
Product Highlights
1. Throughput 60T/H.
2. 14 inch touch screen.
3. Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.
4. 3D holographic scattergram displays the accurate 5 part differentiation of WBC.
5. Large storage capacity: 100,000 results(including histogram, scattergram, patient information).
Product Specifications
| Throughput | 60 tests/hour | ||||
| Assay Items | 5 parts, 29 parameters, 3 histograms, 3D scattergram | ||||
| Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | ||||
| Test Mode | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted. | ||||
| Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 4 research parameter: ALY%, ALY#, IG%, IG# | ||||
| Performance | Item | Linearity Range | Carry Over | CV | |
| WBC | 0~300*10^9/L | ≤0.5% | ≤2.0% | ||
| RBC | 0~8.00*10^12/L | ≤0.5% | ≤1.5% | ||
| HGB | 0~250g/L | ≤0.5% | ≤1.5% | ||
| PLT | 0~3000*10^9/L | ≤1.0% | ≤4.0% | ||
| Sample Volume | CBC+DIFF mode: ≤20 μl CBC mode: ≤10 μl | ||||
| Storage | 100,000 results including histograms, scattergrams and patient information | ||||
| Interface | 4 USB ports, 1 LAN port Bi-direction LIS, support HL7 protocol, Internal RFID reader | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 400VA | ||||
| Package Size (W*D*H) | 575*490*690 mm | ||||
| Gross Weight | 46 kg | ||||
| Reagent Package Size | 330*330*330 m, 400*290*240 mm, 400*290*240 mm | ||||
| Reagent Gross Weight | 22 kg, 2 kg, 1 kg | ||||
Related Products
 BK-3200 Auto 3-part Hematology Analyzer |  BK-6310VET 5-Part Veterinary Hematology Analyzer | |||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | BK-3200 | BK-6310VET | ||||||||||||||||||||||||||||||||||||||||
| Throughput | 60 samples/hour | 60 Tests/hour | ||||||||||||||||||||||||||||||||||||||||
| Principle | Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | ||||||||||||||||||||||||||||||||||||||||
| Parameters | 21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# | ||||||||||||||||||||||||||||||||||||||||
| Sample Volume | Whole blood: 12μl, Prediluted: 20μl | CBC+DIFF mode ≤ 20μl CBC mode ≤ 10μl | ||||||||||||||||||||||||||||||||||||||||
| Performance |
|
| ||||||||||||||||||||||||||||||||||||||||
| Storage | 100,000 results with histogram | 100,000 results including histograms, scattergrams and patient information | ||||||||||||||||||||||||||||||||||||||||
| Interface | 4 USB ports, network port, RS232 serial port | 4 USB ports, 1LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | ||||||||||||||||||||||||||||||||||||||||
| Power Supply | 100~240AC, 50/60Hz, 150VA | AC100~240V±10% 50/60Hz; 400VA | ||||||||||||||||||||||||||||||||||||||||
| Packed Size (W*D*H) | Instrument: 404*564*616mm; Reagent: 340*340*340mm | 575*490*690mm(W*D*H); Reagent Package Size: 330*330*330mm, 400*290*240mm, 400*290*240mm | ||||||||||||||||||||||||||||||||||||||||
| Gross Weight | Instrument: 31kg; Reagent:13kg | 46kg; Reagent Gross Weight: 22kg, 2kg, 2kg |
