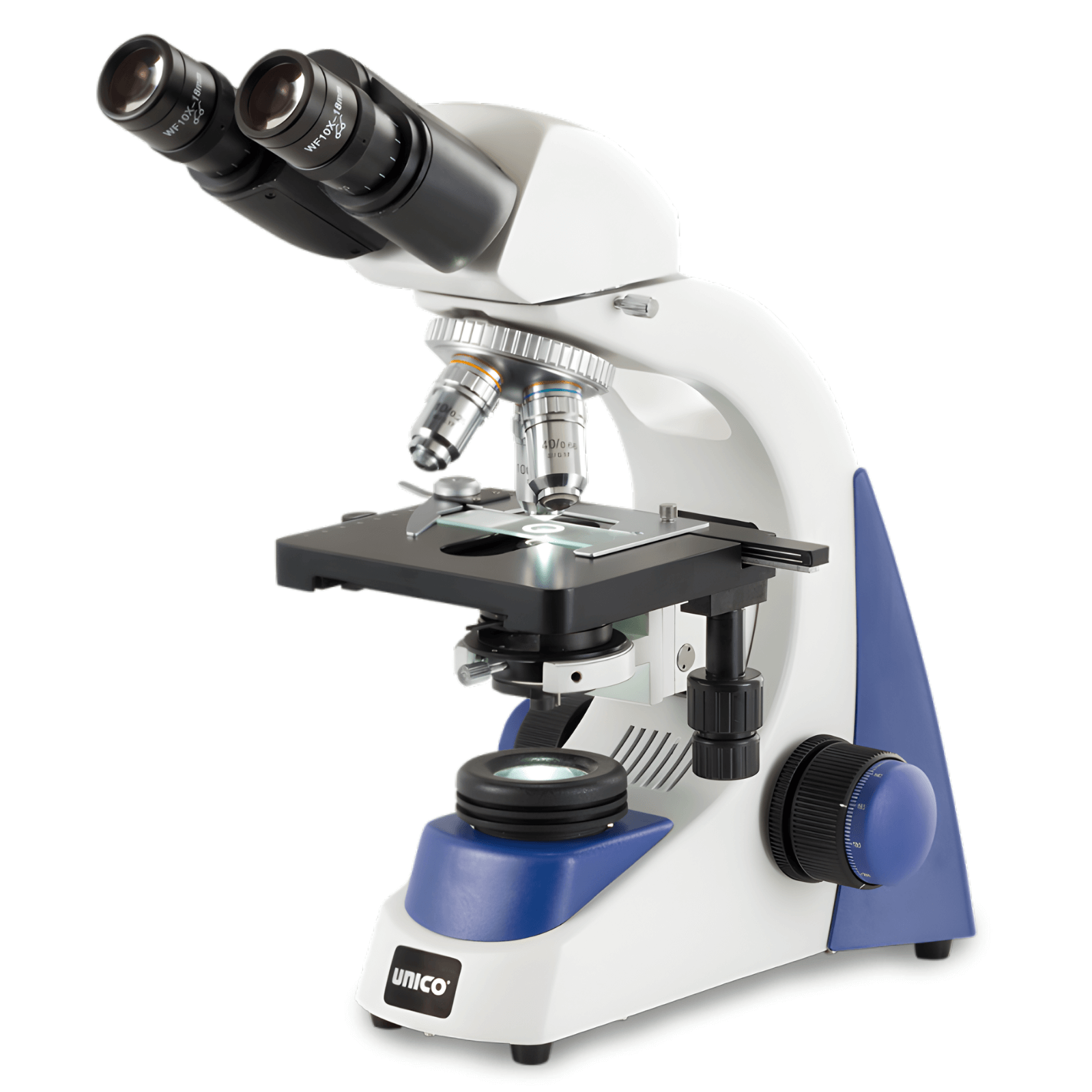

The G380 Series Microscopes by UNICO deliver crisp, clear imaging with state-of-the-art design and advanced optical coatings. These versatile, ergonomic microscopes feature "High-Eyepoint" 10x widefield eyepieces for comfortable viewing, even for those wearing glasses. With options for Monocular, Dual-View, Binocular, and Trinocular heads, along with a selection of Achromat, Semi-Plan, or Plan achromat objectives, the G380 series is designed to meet diverse microscopy needs. The integrated dual voltage transformer and detachable power cord ensure global usability.
Key Features:
Item No | Description |
G380-LED | Binocular Microscope with Achromat Objectives |
G380SP-LED | Binocular Microscope with Semi-Plan Objectives |
G380PL-LED | Binocular Microscope with Plan Objectives |
G381-LED | Monocular Microscope with Achromat Objectives |
G381-LED | Monocular Microscope with Semi-Plan Objectives |
G381-LED | Dual Head Microscope with Achromat Objectives |
G382SP-LED | Dual Head Microscope with Semi-Plan Objectives |
G382PL-LED | Dual Head Microscope with Plan Objectives |
G383-LED | Trinocular Microscope with Achromat Objectives |
G383SP-LED | Trinocular Microscope with Semi-Plan Objectives |
G383PL-LED | Trinocular Microscope with Plan Objectives |
G380-8021 | 0.65x Video Adapter with C-Mount |
B6-9005 | Fuse, 1.5A, 250V |
G380-8034 | 10x Semi-Plan Phase Objective & Slide-In Annulus |
G380-8031 | 40x Semi-Plan Phase Objective & Slide-In Annulus |
B6-8910 | Optical Cleaning Kit |
G380-9008 | The BackPackTM Accessory Organizer for G380 Microscopes |
Actual Size: 9.5” x 7.5“x 16.0”
Shipping Dimension: 13.5” x 10.5” x 17.5“
Net Weight: 14.0 lbs
Shipping Weight: 18.0 lbs

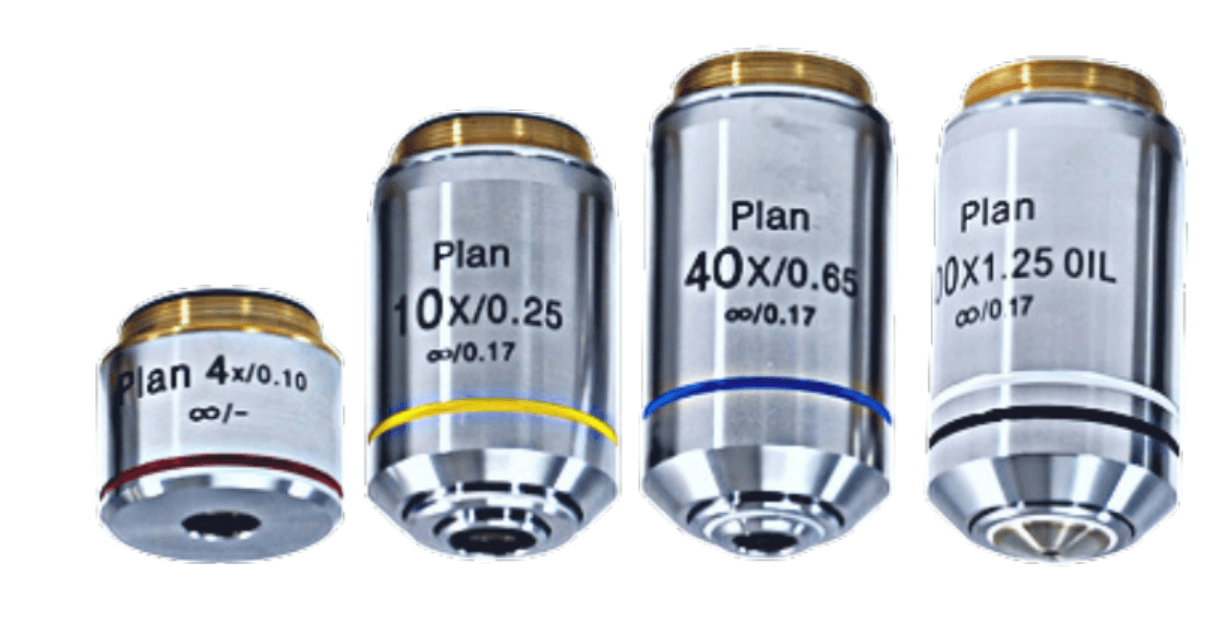

G380PL-LED Objectives
G380-LED | G380SP-LED | G380PL-LED | G381-LED | G381SP-LED | G386-LED | G386PL-LED | G388-LED | G388PL-LED | |
---|---|---|---|---|---|---|---|---|---|
Head | Binocular | Binocular | Binocular | Monocular | Monocular | Binocular | Binocular | Dual-Binocular | Dual-Binocular |
Eyepiece | 10X WF(2)Hi-EP | 10X WF(2)Hi-EP | 10X WF(2)Hi-EP | 10X WF Hi-EP | 10X WF Hi-EP | 10X WF(2)Hi-EP | 10X WF(2)Hi-EP | 10X WF(4)Hi-EP | 10X WF(4)Hi-EP |
Objectives | 10X WF Hi-EP Achromat | 4,10,40,100X Semi-Plan | 4,10,40,100X Plan | 4,10,40,100X Achromat | 4,10,40,100X Semi-Plan | 4,10,40,100X Infinity Achromat | 4,10,40,100X Infinity Plan | 4,10,40,100X Infinity Achromat | 4,10,40,100X Infinity Plan |
Condenser | NA 1.25 | NA 1.25 | NA 1.25 | NA 1.25 | NA 1.25 | NA 1.25 | NA 1.25 | NA 1.25 | NA 1.25 |
Diaphragm | Iris | Iris | Iris | Iris | Iris | Iris | Iris | Iris | Iris |
Stage | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical |
Illumination | LED | LED | LED | LED | LED | LED | LED | LED | LED |
Bulb | 3 Watt LED | 3 Watt LED | 3 Watt LED | 3 Watt LED | 3 Watt LED | 3 Watt LED | 3 Watt LED | 3 Watt LED | 3 Watt LED |
Focusing | Coaxial | Coaxial | Coaxial | Coaxial | Coaxial | Coaxial | Coaxial | Coaxial | Coaxial |
